Powered 8" Two-Way Studio Monitor
The next-generation JBL 308P MkII powered studio monitor makes legendary JBL performance available to every studio. With the revolutionary JBL Image Control Waveguide and refined transducers, JBL 308P MkII offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances the critical listening capabilities of any modern workspace. Featuring patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors and sporting a sleek, modern design, JBL 308P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price.
SPECS

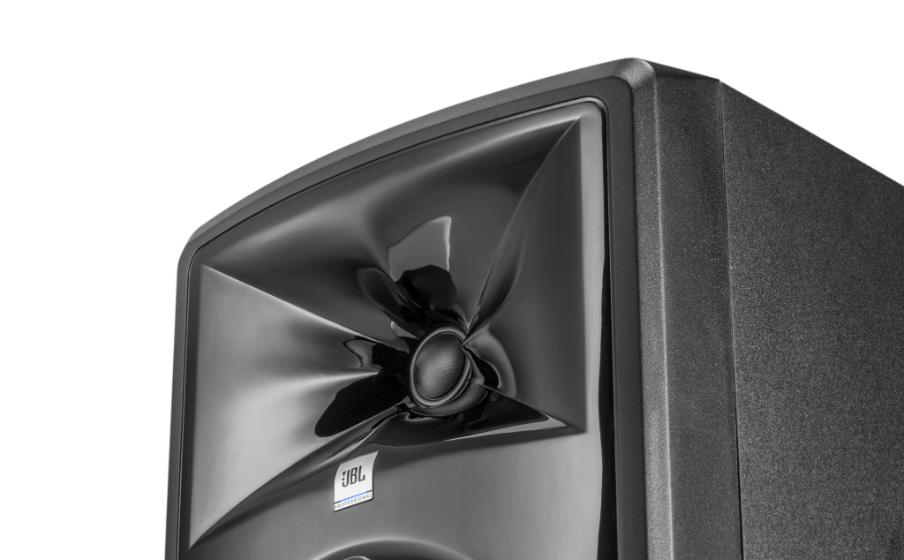

Patented Image Control Waveguide
For detailed imaging and a broad, room-friendly sweet spot
Next-generation JBL transducers
For optimized transient response and improved linearity
New Boundary EQ settings
Compensate for low frequency variants introduced by the environment
Audio Input
Analog Input Types1 x XLR female, 1 x TRS female, balanced
Input Sensitivity92dB / 1m (-10dBV Input)
SPECS
203 mm (8")
HF Driver Size25 mm (1")
HF Driver TypeSoft dome
Crossover1800Hz 4th order acoustic Linkwitz-Riley
Power ConfigurationBi-amplified
HF Driver Power Amp56 W Class D
LF Driver Power Amp56 W Class D
Frequency Response45Hz – 20kHz (±3dB)
Frequency Range37Hz – 24kHz (-10dB)
Low Frequency Extension37Hz (-10dB)
Maximum Continuous SPL102dB
Maximum Peak SPL112dB
Maximum Peak Input Level+6dBV / +20.3dBu (-10dBV / +4dBu)
System Distortion Criteria<10% THD at maximum output with full compressor / limiter engagement
Electrical Distortion Criteria0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
Signal to Noise Ratio75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
Coverage Pattern120° x 90° (horizontal x vertical)
HF Trim Control-2dB, 0dB, +2dB
Boundary EQLF Shelf @ 50Hz
AC Input Voltage100 – 240VAC (±10%), 50 / 60Hz
