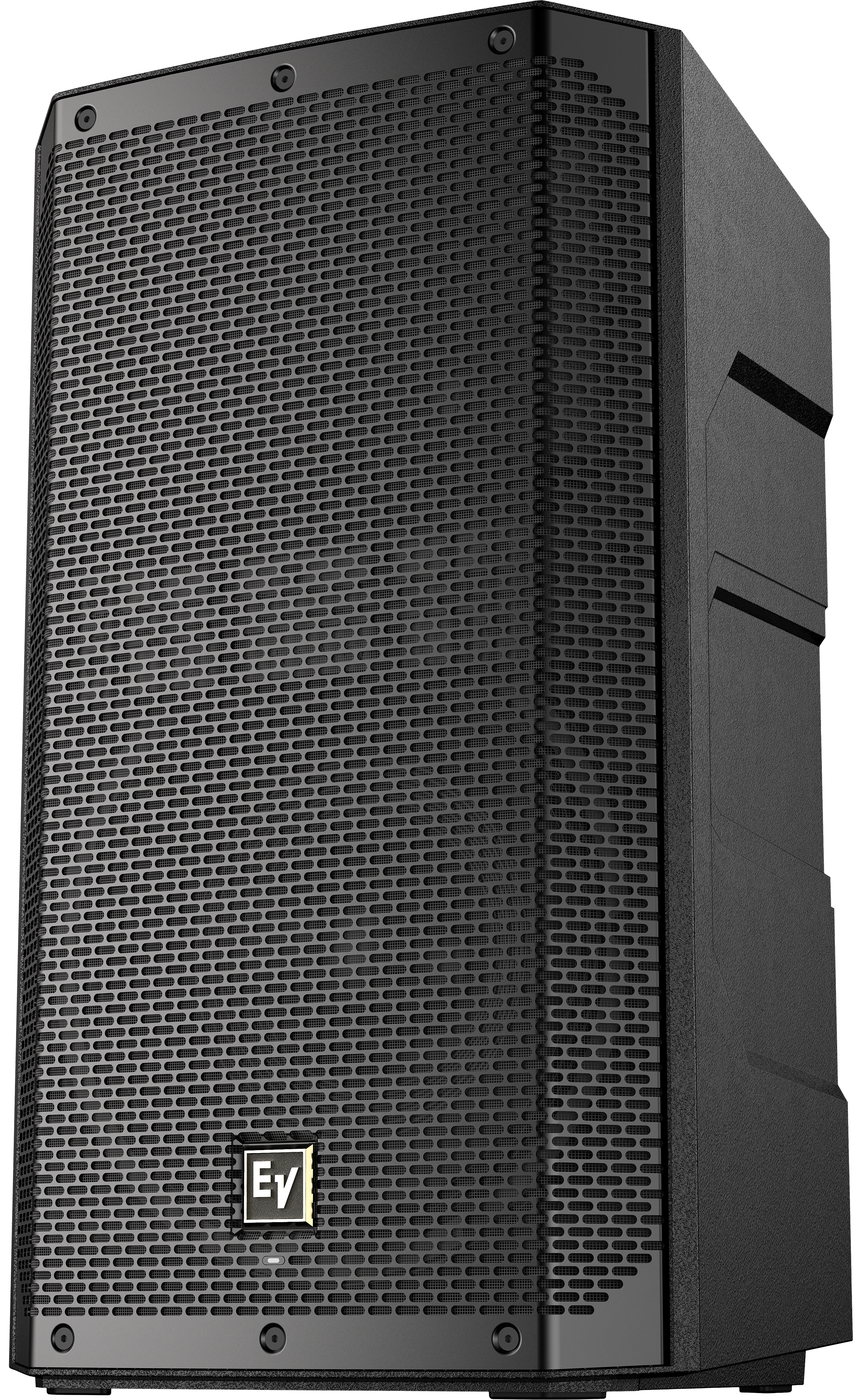

ELX200-12P features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 130 dB SPL utilizing transducers designed and engineered by EV (12-inch EVS-12M woofer coupled with a DH-1L 1-inch titanium compression driver). Powered full-range models allow easy setup via four presets (Music, Live, Speech, Club), sub/top system-match crossovers,
three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.
ELX200 powered models are ideal for portable and installed applications, with lightweight and durable polypropylene enclosures, three M10 threaded mounting points and the proven ZLX handle design for easy lifting.
The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth is available in select countries.
|Frequency response (-3 dB)||57 Hz - 16 kHz¹|
|Frequency range (-10 dB)||51 Hz - 20 kHz¹|
|Maximum SPL||130 dB²|
|Coverage (H x V)||90° x 60°|
|Power rating||1200 W|
|LF transducer||EVS-12M 300 mm (12 in)|
|HF transducer||DH-1L 1-inch titanium compression driver|
|Crossover frequency||1700 Hz|
|Connectors||(1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR|
|Grille||18 AWG steel with powdercoat|
|Suspension||(3) M10 suspension points|
|Color||Black or White|
|Dimensions (H x W x D)||629 mm x 363 mm x 344 mm (24.8 in x 14.3 in x 13.6 in)|
|Net weight||15.6 kg (34.4 lb)|
|Shipping weight||17.7 kg (39.1 lb)|
|Power consumption||100 - 240 V~, 50 - 60 Hz, 1.2 ~ 0.6A³|
